The welded wire mesh can be divided into welded mesh rolls and welded wire mesh panels. The welded wire mesh rolls are widely used for garden fencing, plaster mesh.

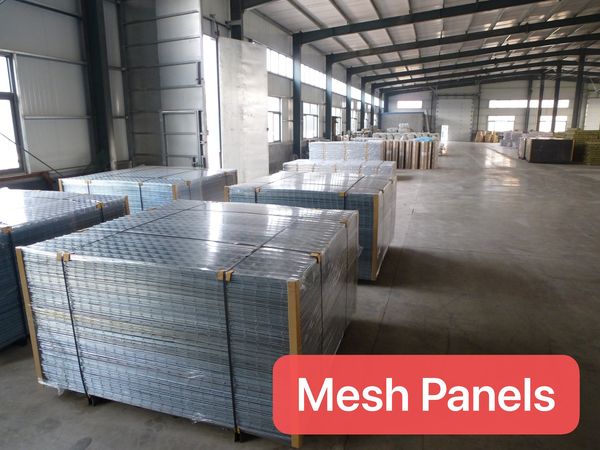

The welded wire mesh panel has thicker wire diameter and larger opening sizes for high security applications, such as prison fencing, factory fencing and other site security fencing.
The welded wire mesh panel is made of low carbon steel with galvanized or PVC coating surface and stainless steel wires. All of them has excellent corrosion resistance performance and durable life.
Specifications:
Item | Mesh | Wire Diameter | ||
inch | mm | gauge | mm | |
JF-01 | 1 × 1 | 25 × 25 | 14–11 | 2.0–3.0 |
JF-02 | 2 × 1 | 50 × 25 | 14–8 | 2.0–4.0 |
JF-03 | 2 × 2 | 50 × 50 | 14–8 | 2.0–4.0 |
JF-04 | 3 × 2 | 75 × 50 | 14–6 | 2.0–5.0 |
JF-05 | 3 × 3 | 75 × 75 | 14–6 | 2.0–5.0 |
JF-06 | 4 × 2 | 100 × 50 | 14–4 | 2.0–6.0 |
JF-07 | 4 × 4 | 100 × 100 | 14–4 | 2.0–6.0 |
JF-08 | 5 × 5 | 125 × 125 | 14–4 | 2.0–6.0 |
JF-09 | 6 × 6 | 150 × 150 | 14–4 | 2.0–6.0 |
Note: Special size and specifications can be made according to customers requires.
