Welded Gabion Box

Welded Gabion Box

Product Description

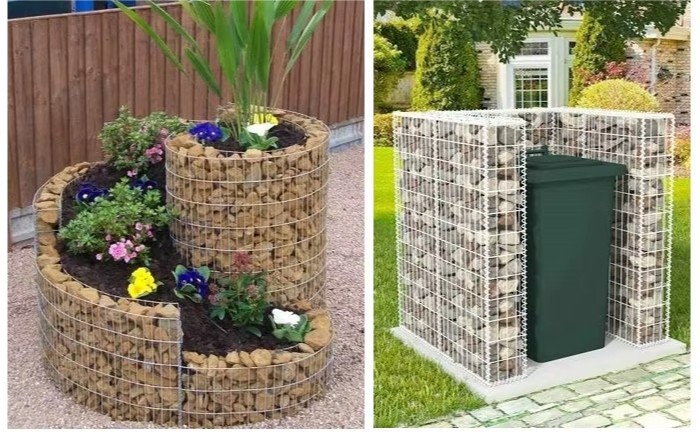

Welded gabion box like cylinder and box that can be filled with stones, rocks, gravels and concrete. In comparison with woven wire gabions, welded gabions offer a higher strength.It is mainly used to decorate gardens, yards and homes in landscape architecture. The rustic appearance of gabion mesh wall brings a special and comfortable feeling to citizens who are bored with concrete structure. In order to meet different project requirements, various wire diameters and unit sizes are available for welded gabion boxes.

Material
Galvanized Steel Wire, Galfan Steel Wire/Zinc-5%Aluminum Wire
Wire Diameter
3 mm-6 mm
Aperture
50*50 mm, 50*100 mm etc

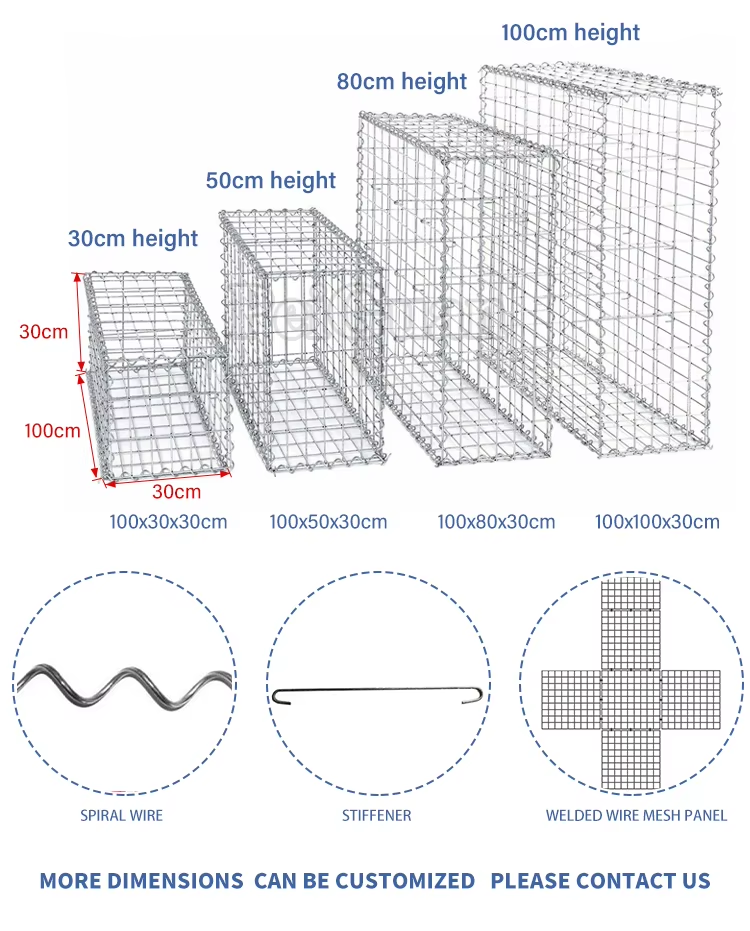

Gabion Box Size
100*30*30 cm, 100*50*30 cm, 100*100*50 cm, 100*100*100 cm etc.
Finish
Hot Dipped Galvanized; Heavy Zinc Coating;Galfan Coating;PVC Coated.
Normal Box Size(cm)
Diaphragms
Capacity (m3)
Mesh Size(mm)
100x30x30
None
0.09
50×50 or 100×50
100x50x30
None
0.15
100x100x50
None
0.5
100x100x100
None
1
150x100x50
1
0.75
150x100x100
1
1.5
200x100x50
1
1
200x100x100
1
2
Other sizes can be customized.
