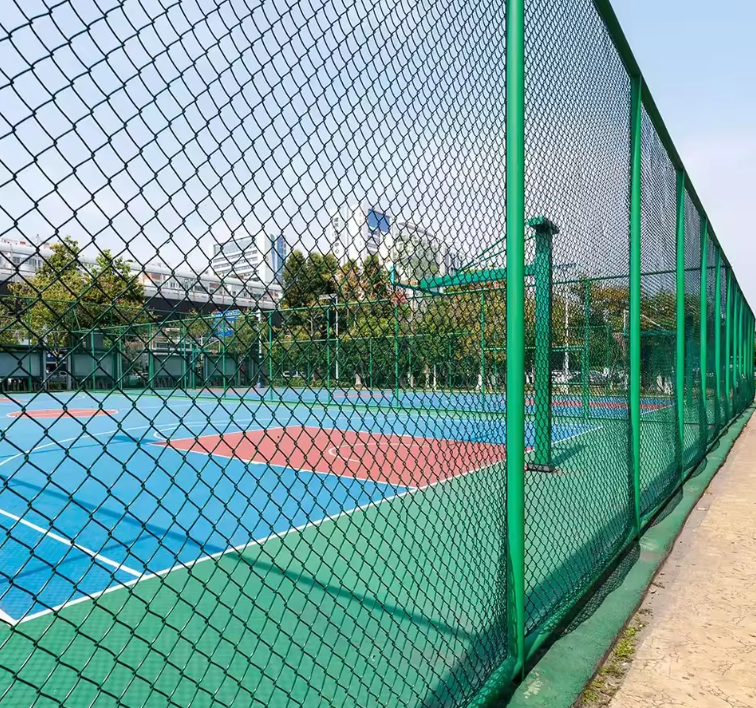

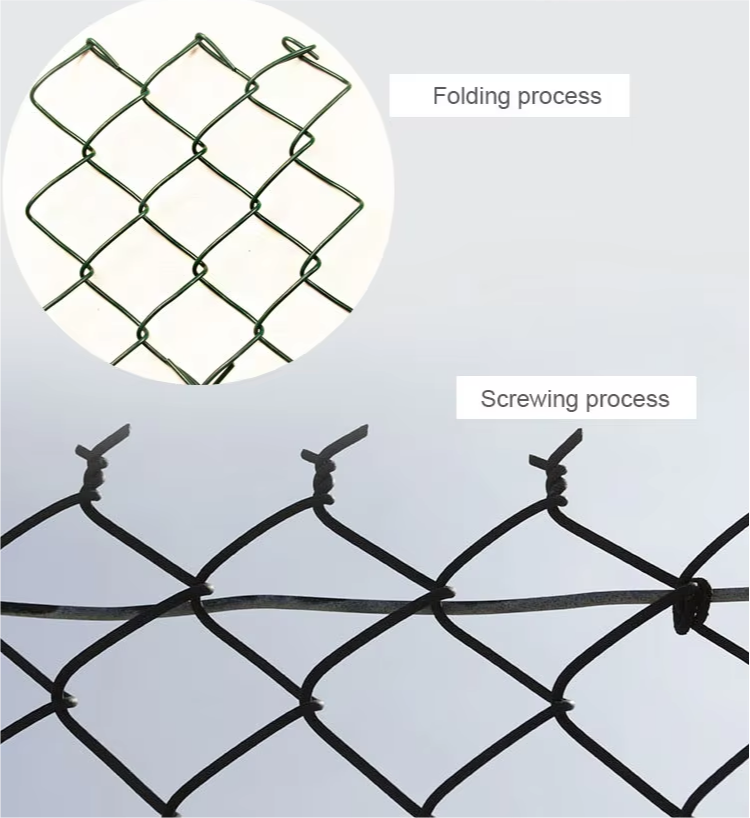

Chain Link Fence is also named diamond wire mesh with the diamond opening. It is made with various metal wires weaving by chain link fence machine. Our chain link fence materials are available in stainless steel, galvanized, and PVC coated wire. They are normally used in gardens, sports yard, industrial sites, houses, roads and events for crowd control.There are three edge types to choose: knuckle - knuckle, twist - twist or knuckle - twist. Chain link fence with twist will usually add security.

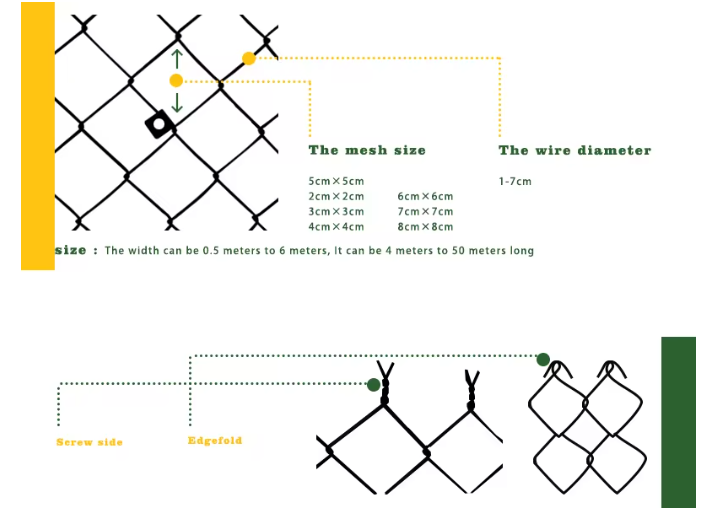

Wire Fencing Specifications:
| Opening | 1" | 1.5" | 2" | 2-1/4" | 2-3/8" | 2-1/2" | 2-5/8" | 3" | 4" |
| 25mm | 40mm | 50mm | 57mm | 60mm | 64mm | 67mm | 75mm | 100mm | |
| Wire diameter | 18Ga - 13Ga | 16Ga - 8Ga | 18Ga-7Ga | ||||||
| 1.2mm- 2.4mm | 1.6mm - 4.2mm | 2.0mm-5.00mm | |||||||
| Length of the roll | 0.50M - 100M(or more) | ||||||||
| Width of the roll | 0.5M - 5.0M | ||||||||
| Surface Treatment | Hot Dipped Galvanized OR Electric Galvanized + Polyester Powder Coated (All colors in RAL) | ||||||||
| Materials and specifications can be made according to customer detailed requirements. | |||||||||
Advantage
1. Long Life
The materials of chain link mesh contain low carbon steel wire, stainless steel wire, aluminum alloy wire. The low carbon steel wire has heavy galvanized coating or PVC coating to ensure a long life.
2. Flexible
The woven diamond pattern provides durable flexible construction.
3. Strong
Woven diamond pattern provides strong construction. The closely spaced diamond mesh construction gives your fence linear strength and springy texture to prevent predators from entering.
