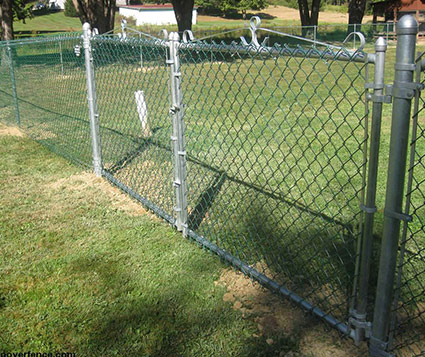

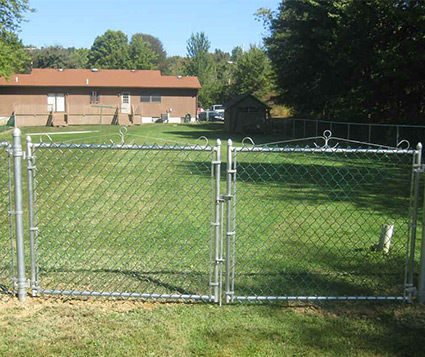

Wire chain link fence can be called as oblique side mesh, diamond-shaped net, chain link fence, active mesh.
Versatile fence materials: high quality, low-carbon steel wire, stainless steel wire, aluminum alloy wire, PVC wire.
Weaving and characteristics: Crochet formed, uniform mesh, the net surface formation, elegant appearance, the net width, wire diameter are rough，difficult to be corrosion ，has long life, weaving simple, elegant, practical.
Application:
The usefulness of versatile fence for rearing chickens,
ducks, geese, rabbits and zoo. Machinery and equipment protection,
highway guardrail, sports venues fence, the road network of green belt
protection，can be used to protect and support the seawall, hillsides,
road and bridge, reservoirs and other civil engineering. And a good
material for flood control. Can also be used for handicraft manufacture,
and the carrier network for machinery and equipment.
| MESH | HOT DIPPED | PVC COATED | |||||
| WIRE BWG | WIRE DIA(MM) | WEIGHT KG/M2 | ROLL DIA 5'X50’ | WIRE DIA before/after | WEIGHT KG/M2 | ROLL DIAN 5'X50'(mm) | |
| 2'' | 13 | 2.4 | 1.5 | 250 | 1.5-2.5 | 0.8 | 230 |
| 2'' | 12.5 | 2.5 | 1.6 | 260 | 1.8-2.8 | 1.2 | 250 |
| 2'' | 12 | 2.77 | 2 | 280 | 2.0-3.0 | 1.4 | 270 |
| 2'' | 10 | 3.4 | 3 | 350 | 3.76-5.5 | 4.7 | 450 |
| 2.5'' | 13 | 2.4 | 1.2 | 240 | 1.8-2.8 | 0.9 | 240 |
| 2.5'' | 12.5 | 2.5 | 1.3 | 250 | 2.5-3.5 | 1.7 | 280 |
| 2.5'' | 12 | 2.77 | 1.6 | 270 | 2.8-4.0 | 2.1 | 380 |
| 2.5'' | 10 | 3.4 | 2.3 | 330 | 3.0-4.5 | 2.4 | 420 |
| 3'' | 12.5 | 2.5 | 1.6 | 230 | 2.2-3.2 | 1.2 | 250 |
| 3'' | 12 | 2.77 | 1.3 | 270 | 2.5-3.5 | 1.4 | 260 |
| 3'' | 11 | 3.05 | 1.6 | 320 | 3.0-4.0 | 2.1 | 370 |
| 3'' | 9 | 3.76 | 2.4 | 360 | 4.0-5.0 | 3.6 | 430 |
