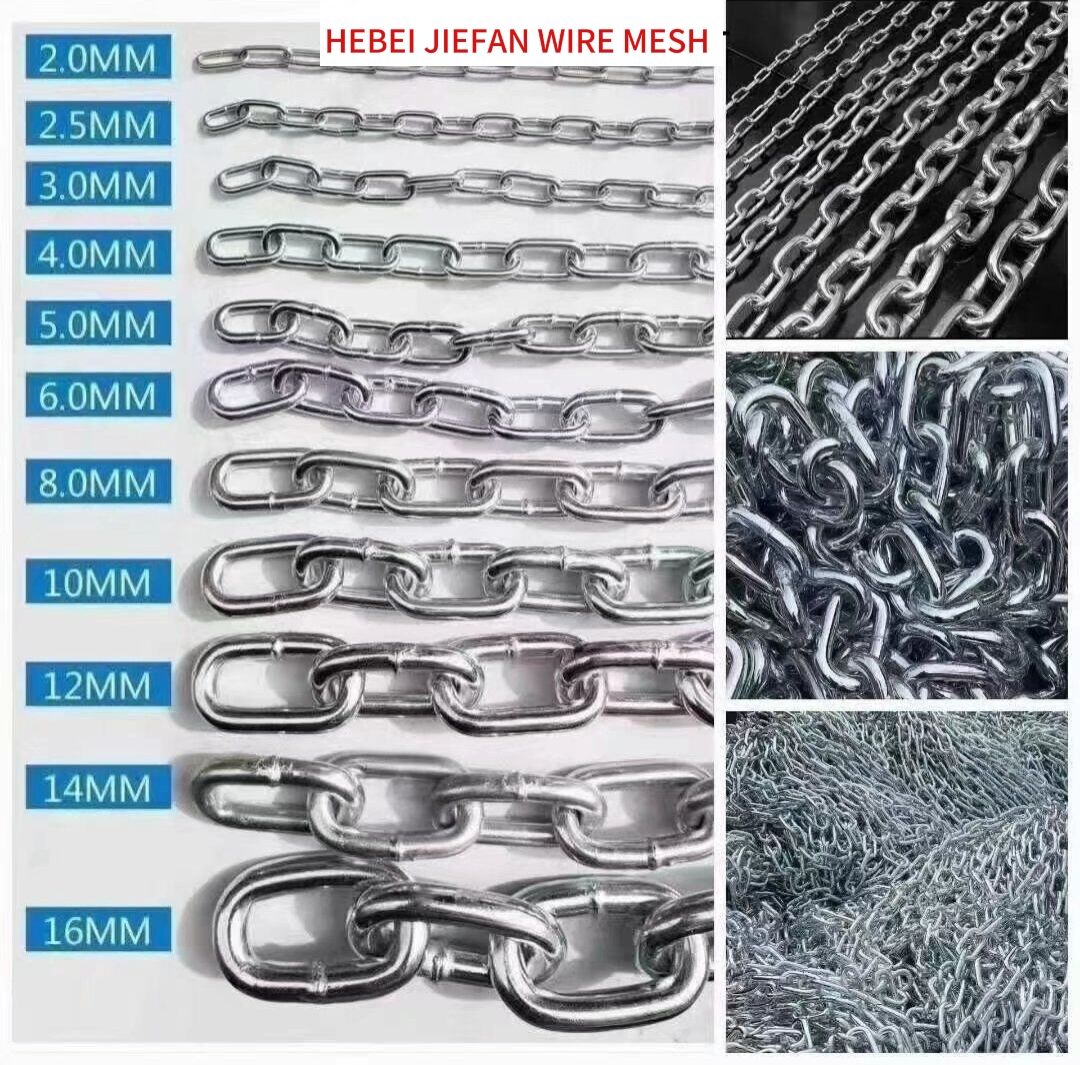

Short Link Chain is a kind of welded link chain. The chain is suitable for all general purposes. Engineering, industrial, agricultural and marine applications in conjunction with our accessories.
We can supply various kinds of chains,commercial chains,high tensile chains or others as you required.
| Products produced by automatic machine | |
| Test | welded test, breaking loading test |
| Surface | Self colour, Electro galvanized, Hot dipped galvanized , Black finished |
| Material | Carton Steel |
| Usage | construction, farm fence |
| Delivery time | 1x20'GP 24tons 30days, |
| 2x20'GP 45tons 45days, | |
| 3X20'GP 72tons 60days, | |
| MOQ | 5tons |
| Payment | T/T or L/C at sight |
| Port | Tianjin,Qingdao |
| Supply ability | 500-800tons per month |

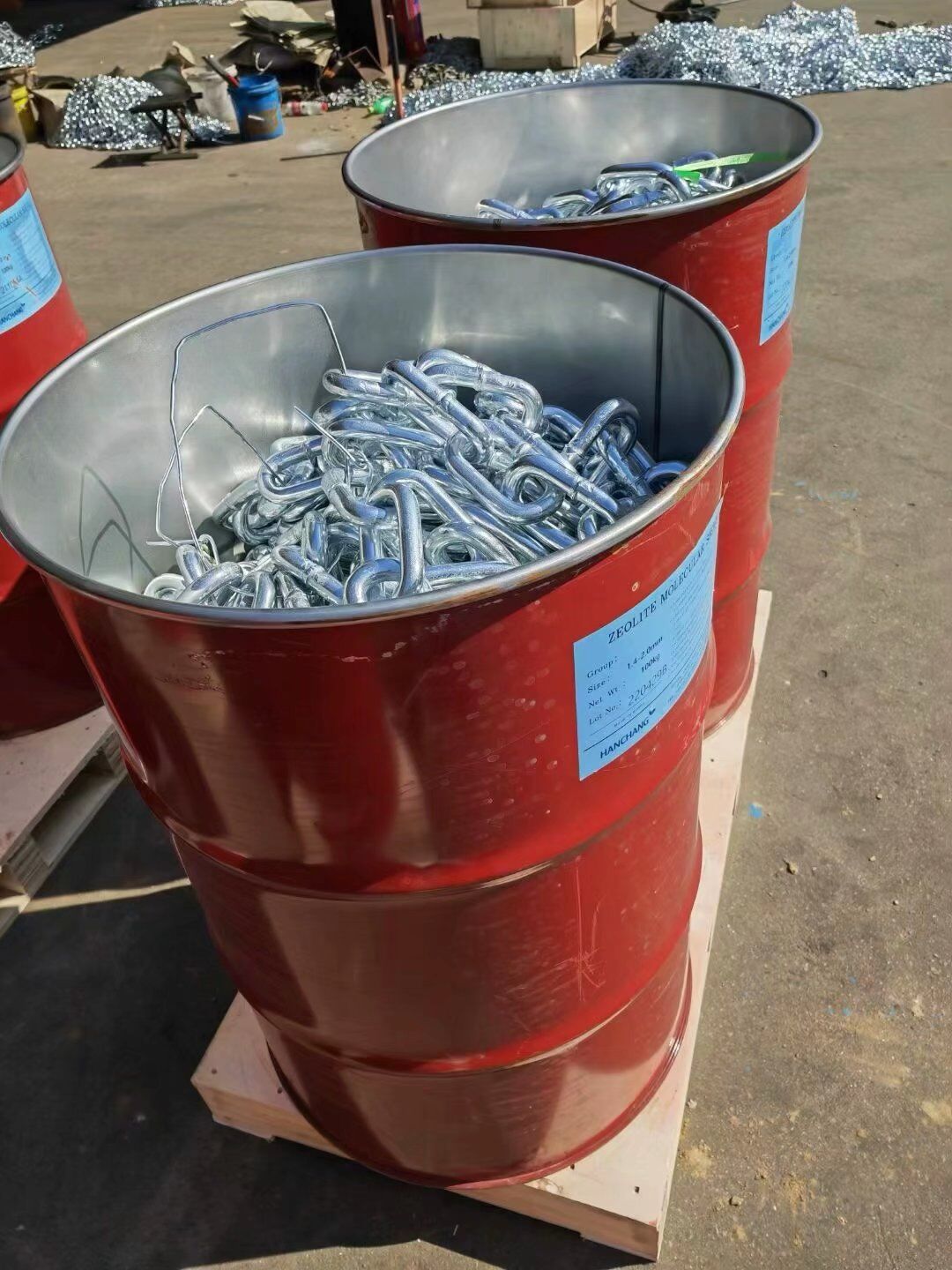

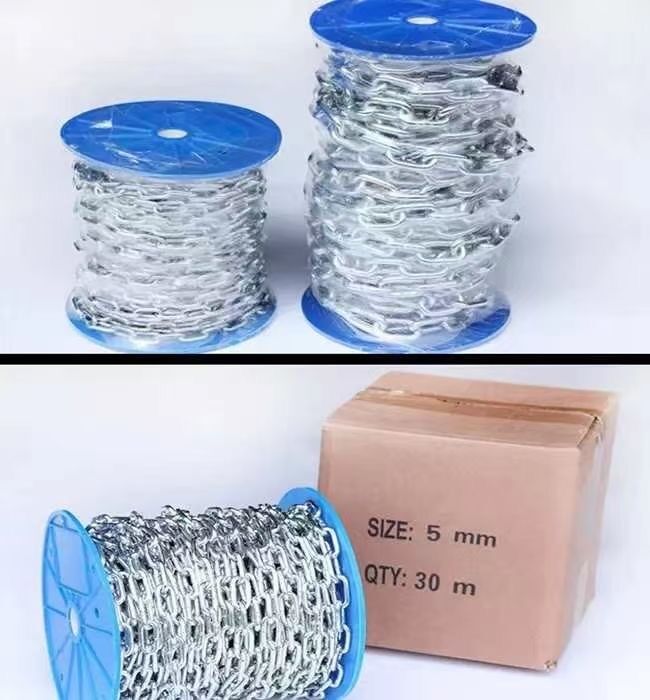

| Package | gunny bag, iron drum, plastic drum, plastic reel, carton,etc. |
| MEDUIUM LINK CHAIN | |||||||
| LINK SPECIFICATIONL | TEST LOAD | BREAKING LOAD | NET WT PER 200FT (KG) | ||||
| D | L | W | |||||
| IN | MM | MM | MM | KG | KG | BF | H.D.G |
| 1/8'' | 3.2 | 20 | 12 | 200 | 400 | 16.4 | 11 |
| 5/32'' | 4 | 23 | 15 | 300 | 600 | 17.8 | 18 |
| 3/16'' | 4.7 | 25 | 18 | 400 | 800 | 24.4 | 25 |
| 7/32'' | 5.5 | 26 | 19 | 550 | 1100 | 34 | 35 |
| 1/4'' | 6.35 | 26 | 23 | 750 | 1500 | 48.8 | 50 |
| 5/16'' | 7.94 | 32 | 29 | 1200 | 2400 | 76 | 78 |
| 3/8'' | 9.5 | 35 | 35 | 1700 | 3400 | 111 | 114 |
| 7/16'' | 11.11 | 38 | 38 | 2300 | 4600 | 154 | 158 |
| 1/2'' | 12.7 | 50 | 45.5 | 3000 | 6000 | 194 | 200 |
| 5/8'' | 15.8 | 60 | 56.7 | 4700 | 9400 | 303 | 312 |
| 3/4'' | 19 | 76 | 69 | 6800 | 13600 | 432 | 445 |
| 7/8'' | 22.2 | 90 | 80 | 9250 | 18500 | 586 | 603 |
| 1'' | 25.4 | 105 | 95 | 12150 | 24300 | 770 | 792 |
